Site #29
Dam Details
NID Number:
TX01340
Construction Complete:
1972
Current Hazard Classification:
High
Height:
37’
Length:
2,500’
USGS Gauge Link:
Elevations
Top of Dam:
577.4’
Auxiliary Spillway:
572.1’
Normal Pool:
560.2’
Google Maps Link:
Major Improvements Completed or Planned
2011 – NRCS ARA funded slope slide repairs
2025 – preliminary engineering completed for federal funded rehabilitation

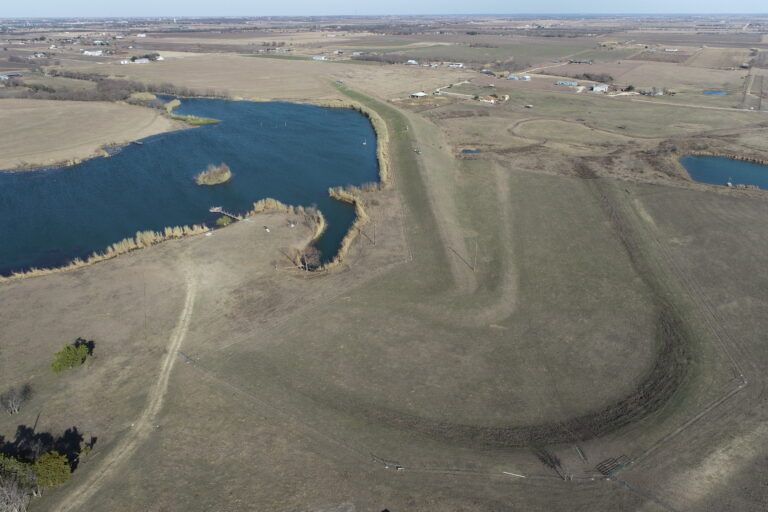

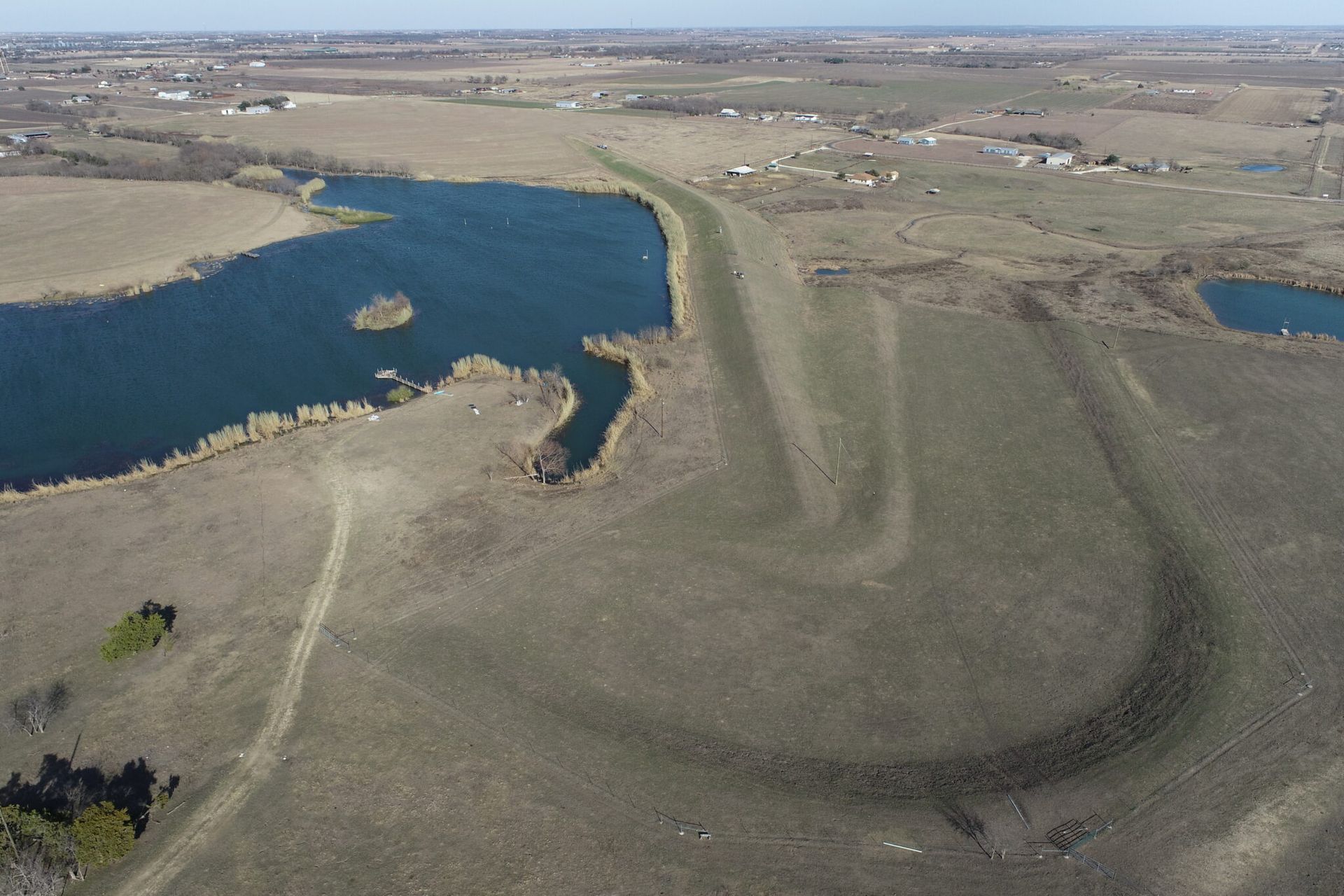

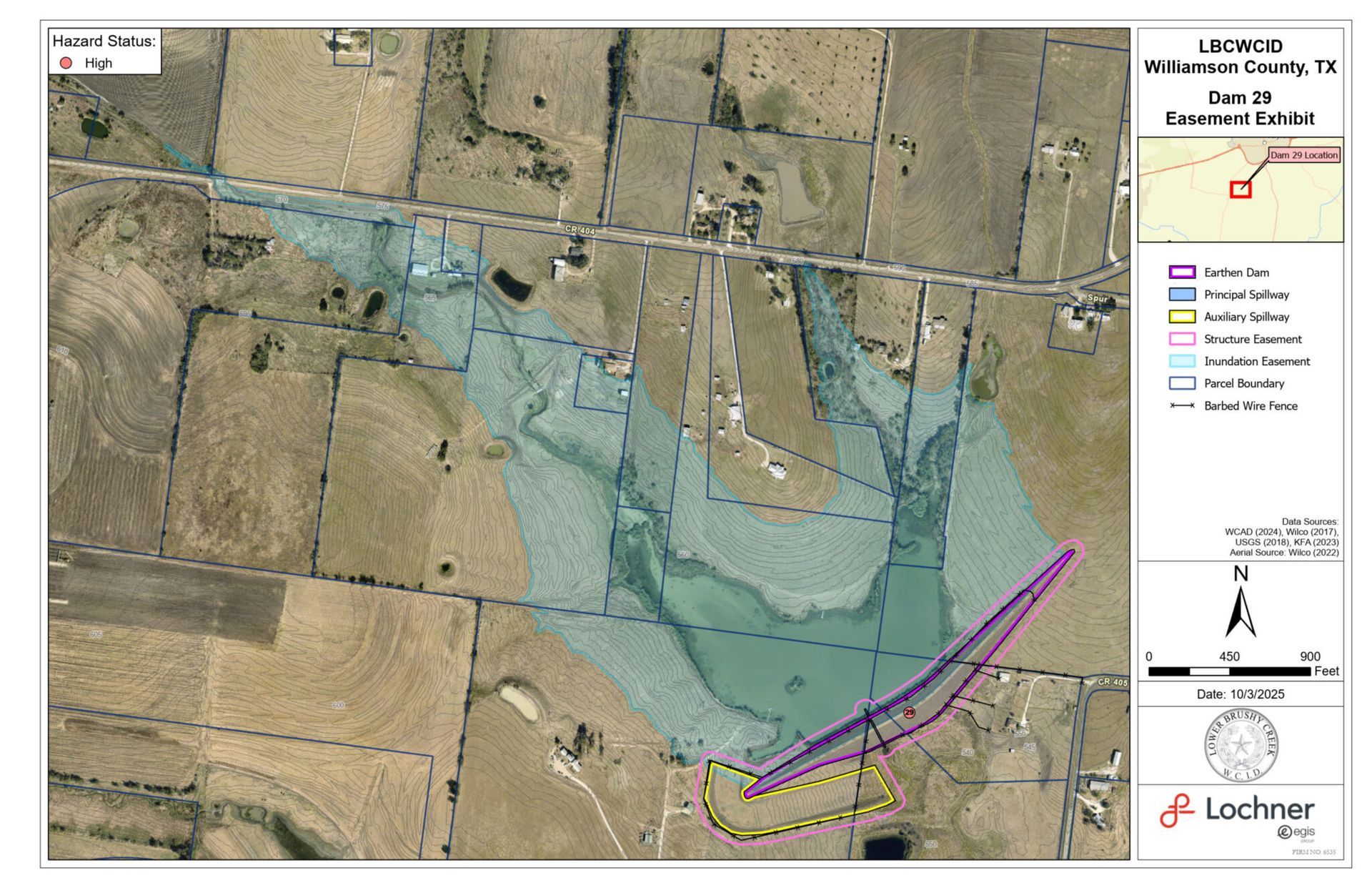

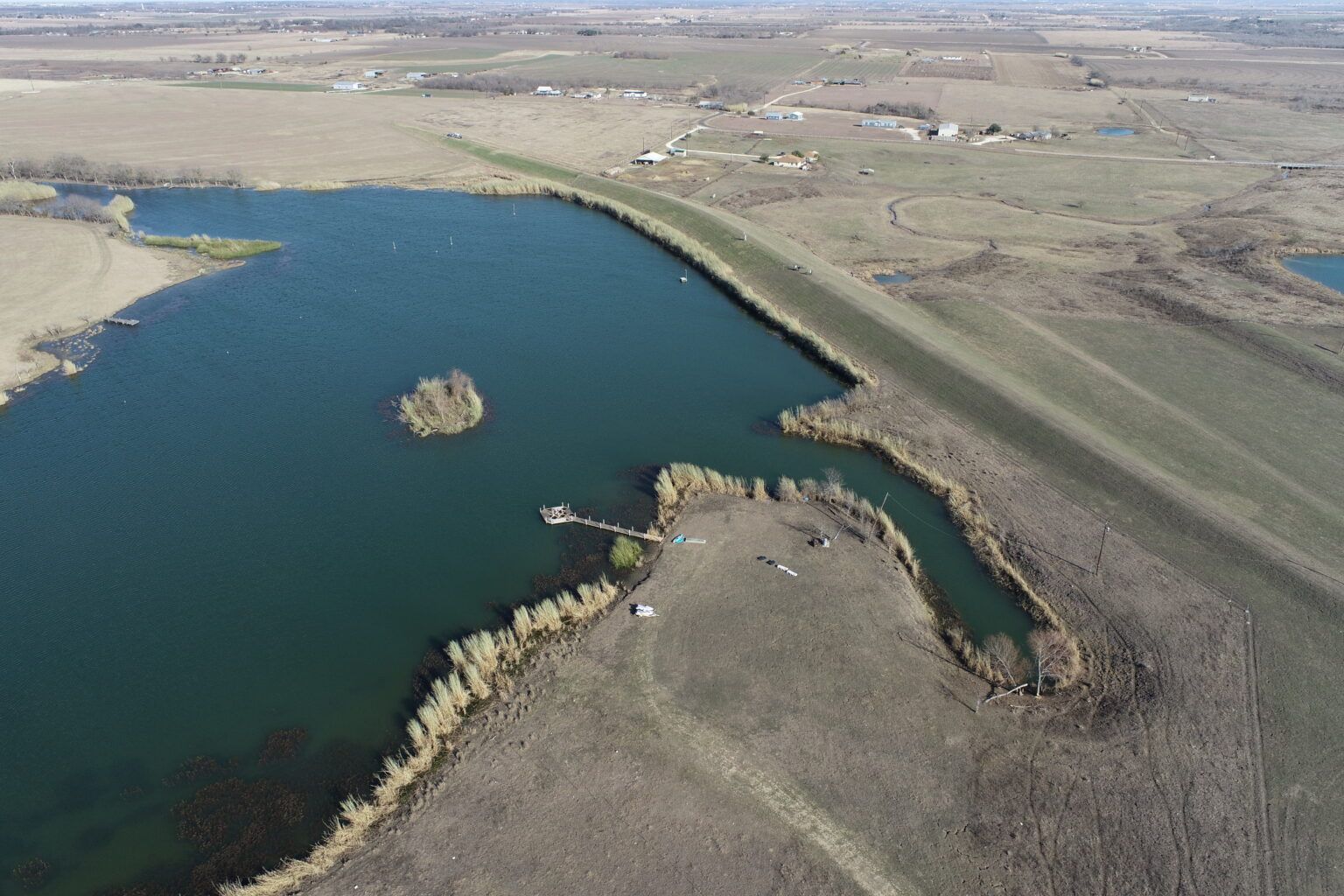

Additional Images
